Getting Faster RFFT in Python

Real Fast Fourier Transform (RFFT) converts a real-valued signal from the time domain to the frequency domain. Different libraries in Python, such as NumPy, SciPy, and pyFFTW, provide an API for RFFT. However, their performance can vary. pyFFTW is a pythonic wrapper around FFTW, which is known for its speed in computing Fourier transforms. I couldn’t find much documentation on how to get the best performance out of pyFFTW’s RFFT. So, I decided to explore this topic and share my findings. Let’s dive in!

Installation Link to heading

FFTW is one of the requirements of pyFFTW but it does not come with it. You can install FFTW through conda. I assume you have conda installed, and you know how to create and activate a conda environment. See pyFFTw’s github page to learn more about pyFFTW installation, including the minimum Python version requirement.

Once you are in your environment, install FFTW by running the following command:

conda install conda-forge::fftw

And the other dependencies can be installed when installing pyFFTW:

conda install conda-forge::pyfftw

Now, we are ready to use pyFFTW! As stated in the pyFFTW documentation, the easiest way to use pyFFTW is through the helper functions available in the module pyfftw.builders. The following code demonstrates how to use pyfftw.builders to perform RFFT on a real-valued array. This is based on the example provided in the pyFFTW documentation.

import numpy as np
import pyfftw

T = np.random.rand(128)
a = pyfftw.empty_aligned(len(T), dtype='float64')
a[:] = T
rfft_object = pyfftw.builders.rfft(a)

R = rfft_object()

Performance Optimization Link to heading

RFFT performance varies across input sizes. The performance of RFFT can be significantly improved when input arrays have specific sizes (e.g., powers of two). Here we consider input sizes that are powers of two, and try to find ways to improve the performance of RFFT further in those cases.

Timing Link to heading

Let’s start by preparing a script that can get the timing of RFFT computation. This timing function will be used to evaluate the performance of different RFFT implementations.

def _get_timing_single(n, rfft_caller, timeout=5.0, max_iter=1000000):
    """
    For a single input size n, return the time taken to compute RFFT using rfft_caller
    """
    pyfftw.forget_wisdom()  # clean up any previous plans
    T = np.random.rand(n)

    R = rfft_caller(T) # dummy to create wisdom
    np.testing.assert_allclose(R, np.fft.rfft(T))  # verify correctness

    total_time = 0.0
    n_iter = 0
    while total_time < timeout and n_iter < max_iter:
        start_time = time.perf_counter()
        rfft_caller(T)
        total_time += time.perf_counter() - start_time
        n_iter += 1

    return total_time / n_iter


def get_timing(n_values, rfft_caller, timeout=5.0, max_iter=1000000, verbose=True):
    """
    For multiple input sizes in n_values, return the time taken to compute RFFT using rfft_caller
    """
    timing = np.full(len(n_values), -1.0, dtype='float64')
    for i, n in enumerate(n_values):
        timing[i] = _get_timing_single(n, rfft_caller, timeout=timeout, max_iter=max_iter)
        if verbose:
            print(f"log2(n) --> {int(np.log2(n))}, time: {timing[i]:.6f} sec", flush=True)
    return timing

_get_timing_single measures the average time to perform an RFFT on an array of size n using the supplied rfft_caller. The function get_timing simply extends this logic to multiple input sizes listed in n_values.

In _get_timing_single, we first clear any previously stored FFTW plans (known as “wisdom”) using pyfftw.forget_wisdom(). If you’re not familiar with FFTW wisdom, here’s a quick summary: For a new transformation for a new input size, FFTW may spend time exploring different algorithms to find the fastest strategy in the first call. The result of this search, “plan”, is essentially a performance recipe that allows future FFTs of the same input size and type to skip the search entirely. This wisdom is cached by pyfftw internally. Running pyfftw.forget_wisdom() ensures that we start fresh without any cached plans. For a deeper explanation, see this short blog post.

Next, we generate a random input array T of length n. We then perform a dummy RFFT call using rfft_caller(T), mainly to allow FFTW to build the optimal plan (i.e., compute wisdom) ahead of timing. The assumption here is that we know, in advance, the input sizes and therefore we can pre-compute plans and use them alter, and, hence, there is no need to include the planning time in our study. (If an application needs to apply fft on new, different (unforeseen) input sizes, the planning time can become an important factor.) We also validate correctness by comparing the output to NumPy’s np.fft.rfft via np.testing.assert_allclose. This step is important because it ensures that we are timing a correct implementation.

We then enter a loop that repeatedly computes the RFFT until either the accumulated time exceeds timeout or the iteration count reaches max_iter. Using a time-based stopping criterion is preferable to a fixed iteration count: for small input sizes, RFFT calls are very fast, allowing many iterations and giving more stable timing; for large inputs, calls are slower, so fewer iterations may fit within the timeout. This keeps timing consistent and meaningful across a range of array sizes. Finally, the function returns the average time per RFFT call.

Now that we have the timing functions ready, we can start exploring different implementations of RFFT using pyFFTW to see how we can improve the performance. But, first, let’s prepare a script that can help us get the timing results for different implementations and plot the performance improvement.

rfft_callers = {
    'v0': rfft_caller_v0,  # baseline (see below)
    # Add other versions here later
}

p_min = 2
p_max = 24
n_values = np.power(2, np.arange(p_min, p_max + 1))

timing_results = {}
for version, rfft_caller in rfft_callers.items():
    print(f'version: {version}')
    timing_results[version] = get_timing(n_values, rfft_caller=rfft_caller)

plt.figure(figsize=(15, 5))
plt.title('Performance Improvement')

plt.axhline(y=1.0, color='r', linestyle='--', label='baseline')  # baseline
for version, timing in timing_results.items():
    if version == 'v0':
        continue # skip baseline
    plt.plot(
        np.arange(p_min, p_max + 1),
        timing_results['v0'] / timing,
        label=version,
        marker='o'
    )

plt.xticks(
    ticks=np.arange(p_min, p_max + 1),
    labels=np.arange(p_min, p_max + 1),
)
plt.xlabel('log2(n)')
plt.ylabel('Speed-up Factor')
plt.grid()
plt.legend()
plt.show()

The above code sets up a framework to compare different RFFT implementations. It defines a dictionary rfft_callers to hold different versions of rfft_caller functions. It then computes the timing for each version and plots the speed-up factor compared to the baseline version. We are now ready to explore different implementations of RFFT using pyFFTW and see how we can improve the performance!

Let’s start with a baseline implementation of RFFT using pyFFTW. This is based on the example provided in the documentation

Baseline (v0) Link to heading

import numpy as np
import pyfftw

def _rfft_caller_v0(T):
    """
    Compute the RFFT of the real-valued array T using pyFFTW.
    """
    a = pyfftw.empty_aligned(len(T), dtype='float64')
    a[:] = T
    rfft_object = pyfftw.builders.rfft(a)
    R = rfft_object()

    return R

First Attempt: Reuse array (v1) Link to heading

One potential optimization is to avoid creating a byte-aligned array on every call. Instead, we can create the byte-aligned array once and reuse it for subsequent calls as long as the size of the input array does not change. This way we are saving the overhead of memory allocation on every call.

class rfft_caller_v1:
    def __init__(self):
        self.real_arr = None

    def __call__(self, T):
        if self.real_arr is None or len(T) != len(self.real_arr):
            self.real_arr = pyfftw.empty_aligned(len(T), dtype='float64')

        rfft_obj = pyfftw.builders.rfft(self.real_arr)
        self.real_arr[:] = T
        rfft_obj.execute()

        return rfft_obj.output_array

_rfft_caller_v1 = rfft_caller_v1()

In this modified version, an instance of the class rfft_caller_v1 can be used to compute the RFFT. It holds the byte-aligned array real_arr, as an attribute, after the first call. When the __call__ method is invoked again, it checks if the size of the input array T matches the size of the existing aligned array. If yes, it reuses the existing byte-aligned array. Let’s update the dictionary rfft_callers to include this new version:

rfft_callers = {
    'v0': _rfft_caller_v0,
    'v1': _rfft_caller_v1,
}

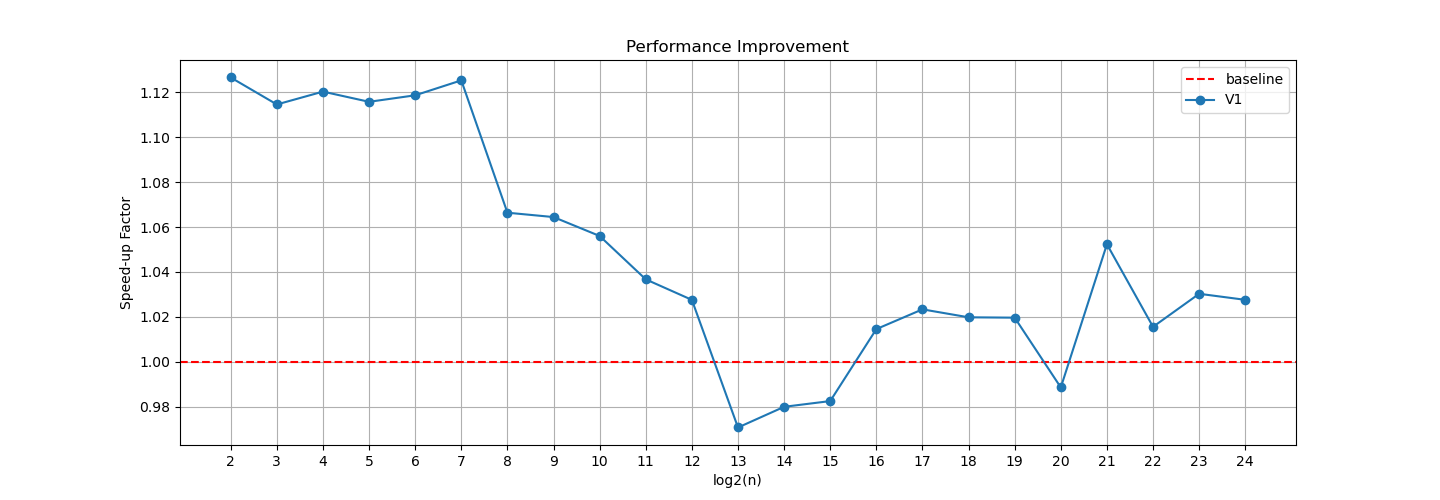

Let’s check out the performance improvement. The blue line higher than the red baseline implies “faster”.

For the input sizes <= 2^10, the figure shows approximately 10% performance gain. For longer input sizes, the performances are relatively the same; because, most likely, the Fourier transformation takes a bigger share of the running time in those cases. As a side, this can be investigated by profiling each line of the code. Will leave it to the keen reader to explore this further!

Second Attempt: Tell RFFT to avoid copy (v2) Link to heading

According to pyfftw.builders.rfft documentation:

By default, these functions will always create a copy (and sometimes more than one) of the passed-in input array. This is because the creation of the pyfftw.FFTW object generally destroys the contents of the input array.

This only influences a copy during the creation of the object

In our case, the byte-aligned array real_arr is used when creating the RFFT object. And, then, it is filled with the contents of T right before executing the RFFT object. Therefore, at the time of creating the RFFT object, the contents of real_arr are not important as they will be overwritten. Therefore, we can set the avoid_copy parameter to True to avoid unnecessary copying of data at the time of creating the RFFT object.

class rfft_caller_v2:
    def __init__(self):
        self.real_arr = None

    def __call__(self, T):
        if self.real_arr is None or len(T) != len(self.real_arr):
            self.real_arr = pyfftw.empty_aligned(len(T), dtype='float64')

        rfft_obj = pyfftw.builders.rfft(self.real_arr, avoid_copy=True)
        self.real_arr[:] = T
        rfft_obj.execute()

        return rfft_obj.output_array

_rfft_caller_v2 = rfft_caller_v2()

Let’s update the dictionary rfft_callers to include this new version, and check out the performance improvements.

rfft_callers = {
    'v0': rfft_caller_v0,
    'v1': rfft_caller_v1,
    'v2': rfft_caller_v2,
}

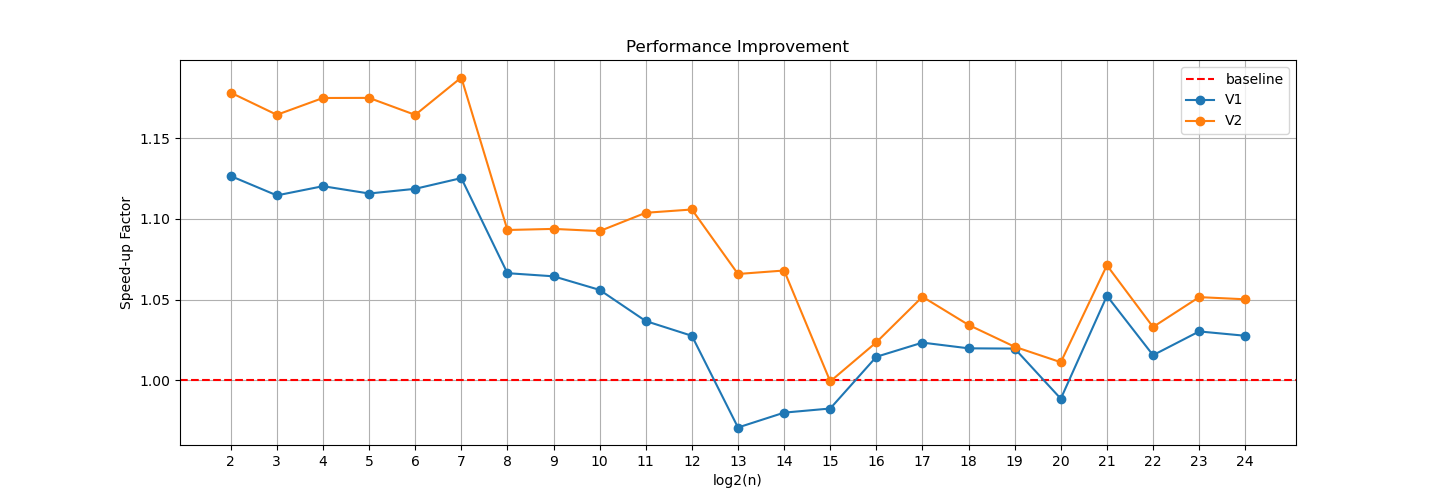

In the performance plot below, the orange line represents the performance of this new version (v2). The higher the line, the better the performance.

As shown in the performance plot above, our second attempt to optimize the RFFT computation resulted in about 5%-15% speed-up relative to the baseline.

Third Attempt: Use pyfftw.FFTW directly (v3) Link to heading

In the previous versions, we used pyfftw.builders.rfft to create the RFFT object. As mentioned in pyfftw.builders documentation, the goal of builder functions is to provide a convenient interface for creating FFTW objects. As mentioned in the documentation, any builder function, under the hood, returns an object that is an instance of pyfftw.FFTW. One potential optimization is to use pyfftw.FFTW directly. This might save some overhead associated with the builder functions.

class rfft_caller_v3:
    def __init__(self):
        self.real_arr = None
        self.complex_arr = None

    def __call__(self, T):
        if self.real_arr is None or len(T) != len(self.real_arr):
            self.real_arr = pyfftw.empty_aligned(len(T), dtype='float64')
            self.complex_arr = pyfftw.empty_aligned(len(T) // 2 + 1, dtype='complex128')

        rfft_obj = pyfftw.FFTW(
                self.real_arr,
                self.complex_arr,
                direction='FFTW_FORWARD',
            )

        self.real_arr[:] = T
        rfft_obj.execute()

        return self.complex_arr

_rfft_caller_v3 = rfft_caller_v3()

As shown above, we now need to provide the output array complex_arr to hold the RFFT result. And, we also pass direction='FFTW_FORWARD' to indicate that we want to perform the forward transformation. The pyfftw.FFTW class then infers that we want to compute RFFT based on the data types of the input and output arrays. We lose some convenience compared to the builder interface, but we may get better performance. Let’s update the dictionary rfft_callers to include this new version, and check out the performance improvements.

rfft_callers = {
    'v0': rfft_caller_v0,
    'v1': rfft_caller_v1,
    'v2': rfft_caller_v2,
    'v3': rfft_caller_v3,
}

The speed-up now ranges from 25% to 300% for most input sizes! To be more specific, for input sizes <= 2^6, the current version is around 3x times faster than the baseline! For input sizes >= 2^15, the performance gain is between 25% to 75%. It is not clear why the performance is not monotonic with respect to input size. Investigating that is out of the scope of this post. Overall, using pyfftw.FFTW directly resulted in a significant performance improvement compared to using the builder function.

Fourth Attempt: Reuse the RFFT object (v4) Link to heading

As our last attempt, we can try to reuse the RFFT object across multiple calls when the input size does not change. This avoids the overhead of creating a new RFFT object on every call.

class rfft_caller_v4:
    def __init__(self):
        self.real_arr = None
        self.complex_arr = None
        self.rfft_obj = None


    def __call__(self, T):
        if self.real_arr is None or len(T) != len(self.real_arr):
            self.real_arr = pyfftw.empty_aligned(len(T), dtype='float64')
            self.complex_arr = pyfftw.empty_aligned(len(T) // 2 + 1, dtype='complex128')

            self.rfft_obj = pyfftw.FFTW(
                    self.real_arr,
                    self.complex_arr,
                    direction='FFTW_FORWARD',
                    flags=('FFTW_MEASURE',),
                    threads=1,
                )

        self.real_arr[:] = T
        self.rfft_obj.execute()

        return self.complex_arr

_rfft_caller_v4 = rfft_caller_v4()

And we can check the performance by updating the dictionary rfft_callers, and running the plot script.

rfft_callers = {
    'v0': rfft_caller_v0,
    'v1': rfft_caller_v1,
    'v2': rfft_caller_v2,
    'v3': rfft_caller_v3,
    'v4': rfft_caller_v4,
}

As shown in the performance plot above, reusing the RFFT object resulted in a further performance improvement. For arrays with input size <= 2^8, the current version is 30-35x faster than the baseline! From that point onward, the performance gain reduces as the input size increases, but it is still around 2x faster for input size 2^24. This is a significant improvement compared to our baseline implementation! If the application requires frequent RFFT computations on arrays of same size, then this approach can be very beneficial as one can store the rfft_caller_v4 instance and reuse it across multiple calls.

Conclusion Link to heading

In this post, we explored different ways to optimize the performance of RFFT computation using pyFFTW in Python. We started with a baseline implementation and gradually improved it by applying various optimizations, such as byte-aligning the input array, using the pyfftw.FFTW object directly, and reusing the RFFT object across multiple executions.

BONUS Link to heading

During my exploration, I also tried the following cases based on what I read in the FFTW documentation. Our so-far-best performance is v4. This will be considered as our new baseline.

(1) The impact of the flag FFTW_DESTROY_INPUT

Passing the FFTW_DESTROY_INPUTflag allows FFTW to use the memory allocated for the input array during transformation, if possible. The plot below shows its impact on the performance.

As shown, there is no considerable, positive impact. In fact, according to the pyfftw.FFTW documentation:

The default behaviour is, if possible, to preserve the input. In the case of the 1D Backwards Real transform, this may result in a performance hit

So, this flag most likely can help with improving performance in backward transformation. So, observing no improvement in forward transformation, should not be surprising.

(2) The impact of multi-threading

pyfftw.FFTW allows users to leverage multi-threading. The parameter threads is set to 1 by default, meaning the pyfftw.FFTW takes the single-threaded approach by default. Note that our baseline (V4), is single-threaded. The plot below shows the performance improvement when the number of threads is set to two , and when it is set to eight, the value of multiprocessing.cpu_count() in my machine.

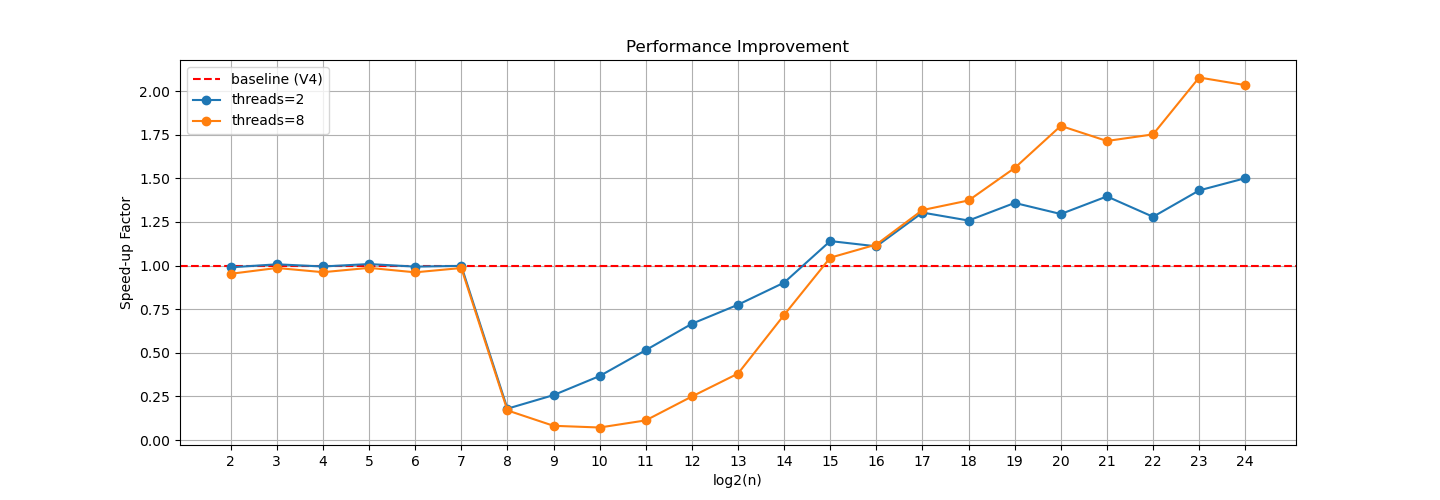

The speed-up occurs when the array’s length is >= 2^15, where higher number of threads results in better performance, up to 2x faster. It is interesting to see that a multi-threading process does not necessarily improve the performance. In fact, for mid-range input size, there is a considerable drop in the performance. This drop is likely due to the overhead of distributing load across threads, and managing the process. So users should not assume that multi-threading will always improve the performance, and they need to check and see when multi-threading helps with improving the performance of pyFFTW on their machine.

(3) The impact of planning effort

According to pyfftw documentation:

‘FFTW_ESTIMATE’, ‘FFTW_MEASURE’, ‘FFTW_PATIENT’ and ‘FFTW_EXHAUSTIVE’ are supported. These describe the increasing amount of effort spent during the planning stage to create the fastest possible transform. Usually ‘FFTW_MEASURE’ is a good compromise. If no flag is passed, the default ‘FFTW_MEASURE’ is used.

So far, we have been using the default flag, i.e. FFTW_MEASURE. Now we would like to check the impact of using less-time-consuming flag FFTW_ESTIMATE and more-time-consuming flag FFTW_PATIENT. The FFTW_EXHAUSTIVE flag is not considered here since its planning time can be significanly high for large arrays.

The plot below shows the impact of those two flags on performance, relative to the baseline (V4), which uses the default flag FFTW_MEASURE.

As shown, using FFTW_ESTIMATE flag results in a significant drop in the performance relative to FFTW_MEASURE, particularly for input sizes that are >=2^15. The performance difference between FFTW_PATIENT and FFTW_MEASURE is negligible for input sizes <= 2^21. There is, however, performance boost for large input, where size is >=2^22. Since the planning flag affects the planning time as well, it is worth it to show how much time the planning takes in those three flags. The following table shows the planning time, in seconds, for input sizes >= 2^22.

As we can see, the planning time with FFTW_PATIENT is 20x slower compared to FTFTW_MEASURE. This is not an issue if users want to perform planning with this flag for a few large arrays. Because they can save the wisdom and re-use it later. However, performing the planning for many large arrays with FFTW_PATIENT can take a considerable time.
